Low Speed Centrifuge
product details

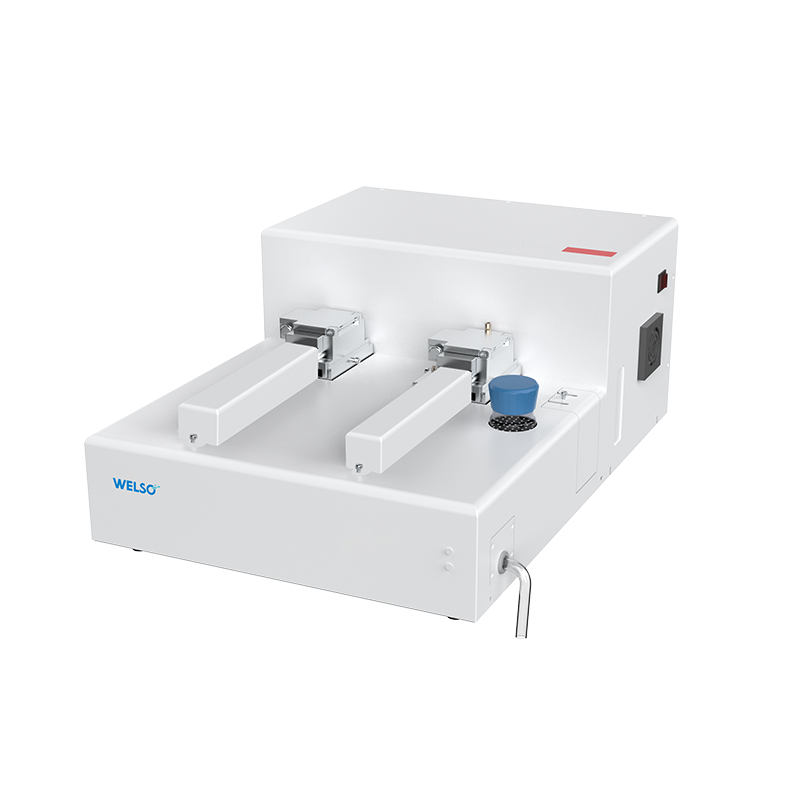

The autosampler is a supporting device for other types of total organic carbon analyzers except TOC1700, which is designed to improve the level of automation and work efficiency. The device is equipped with multiple sensors to monitor the operating status in real time to ensure the safe and stable operation of the instrument.
The autosampler is connected to the total organic carbon analyzer through a USB interface to achieve simple and fast online operation. When used in conjunction with the TOC analyzer, the sampling and testing process is automatically completed, which effectively saves manual operation time, significantly improves laboratory work efficiency, and meets the automation needs of modern analytical experiments.
The automatic sampler of the WAS200 series TOC analyzer has a series of advanced features, which improves the instrument's operating convenience and automation level.
● One-stop operation: equipped with advanced operating software, it integrates instrument control, status monitoring, data processing and access, simplifies the entire analysis process and improves work efficiency.
● Modular design: The whole machine adopts a modular structure, which is easy to operate and daily maintenance and repair, and improves the convenience and maintainability of the equipment.
● Wide detection range: It has an extremely wide detection range to meet a variety of application requirements and ensure accurate analysis of different types of samples.
● Highly automated: It supports automatic injection of TC and TIC sample boats, and automatically performs TIC acid treatment, which greatly reduces manual operation and improves the automation level of the experiment.
● Accurate temperature control: The cracking furnace adopts 36V safe voltage and PID temperature control technology to ensure accurate and stable furnace temperature and improve the reliability of sample analysis.
● Host gas supply: No need to prepare additional oxygen cylinders, gas is directly supplied by the host, which simplifies the equipment installation and operation process and reduces operating costs.
● The WAS200 autosampler, with its efficient automation performance and stable operating system, has greatly improved the laboratory's work efficiency and safety, and met the high standards of modern analytical experiments.
Technical Specification
Model | WAS200 |
Sample Type | Solid or suspension liquid sample |
Control Mode | PC software controlled |
Analysis Parameter | TC, TIC, TOC (TC-IC) |
TC Measurement Method | High temperature catalytic combustion (900'C, Max.1000°C) |
TlC Measurement Method | Acidification at 200°C |
Sample Carrier | Ouartz boat |
Gas Requirement | Oxygen, purity 299.995% (TOC analyzer provides) Flow rate: 500mL/min |
Measurement Range | 0.1-30.0mg |
Max.Sample Volume | Solid: 1.0g Tcliquid: 0.5mL ic liquid: 0.3mL |
Measurement Time | 5-8min |
Power | AC100-240V 50/60 Hz, 1000W |

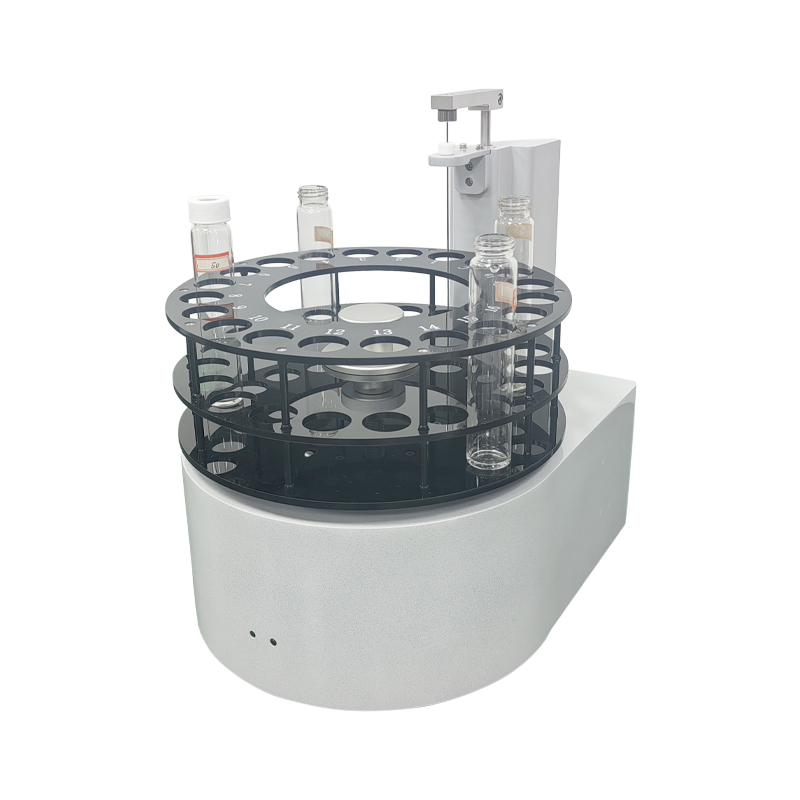

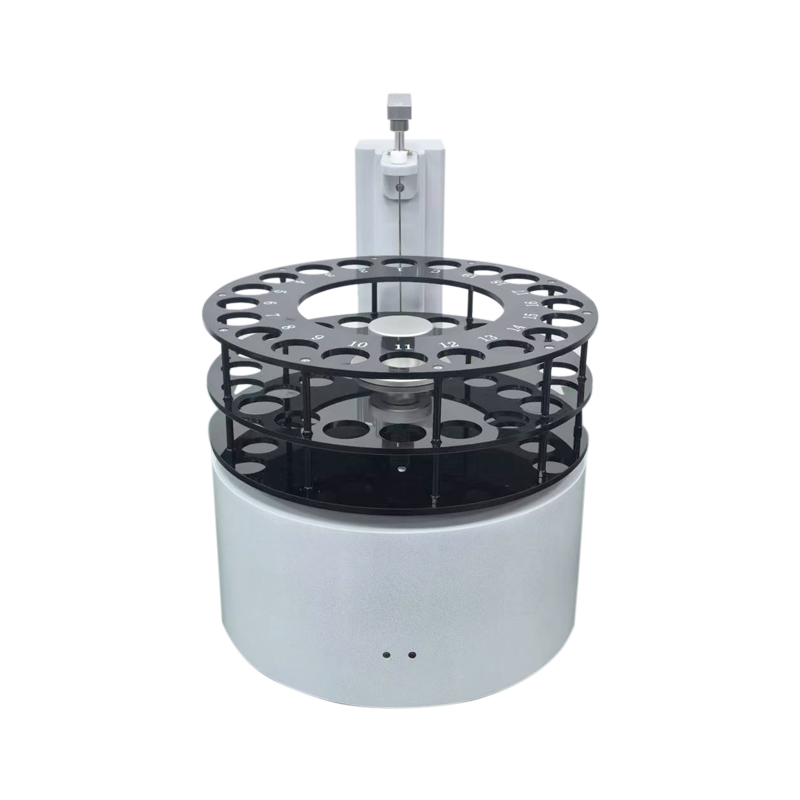

The autosampler of the WASW20 series TOC analyzer has the following significant features to meet the needs of efficient, convenient and stable experiments:
● Compact and beautiful: The appearance design is compact and simple and generous, suitable for various experimental environments, saving space and improving visual effects.
● Easy operation: Users can easily operate without professional knowledge or special training, which greatly reduces the threshold of use and improves the convenience of use.
● Efficient automation: It supports continuous injection of 20 water samples without the need for staff to supervise the whole process, suitable for long-term operation and improve work efficiency.
● Quick connection: It uses a USB interface to connect to the PC, which is simple and fast, ensuring stable and smooth data transmission when used online with the total organic carbon analyzer.
● Real-time monitoring: Equipped with multiple sensors, real-time monitoring of the operating status, ensuring the safe use of the equipment, and avoiding failures or operating errors.
● Stable and reliable: Even if it is running for a long time, it can maintain stable and reliable performance, without special maintenance, reducing daily management costs.
The WASW20 autosampler provides great convenience for laboratories with its high efficiency, stability and easy operation, especially for analytical tasks that require high throughput and long-term continuous operation.
Technical Specification
Model | WASW20 |
Sample Type | Liquid sample |
Max.Number of Samples | 19 sample positions an 1 cleaning position |
Volume of Sample Bottle | 60mL |
Ambient Temperature | 0-40 °C |
Relative Humidity | ≤85% |
Power | AC100-240V 50/60 Hz, 120W |
